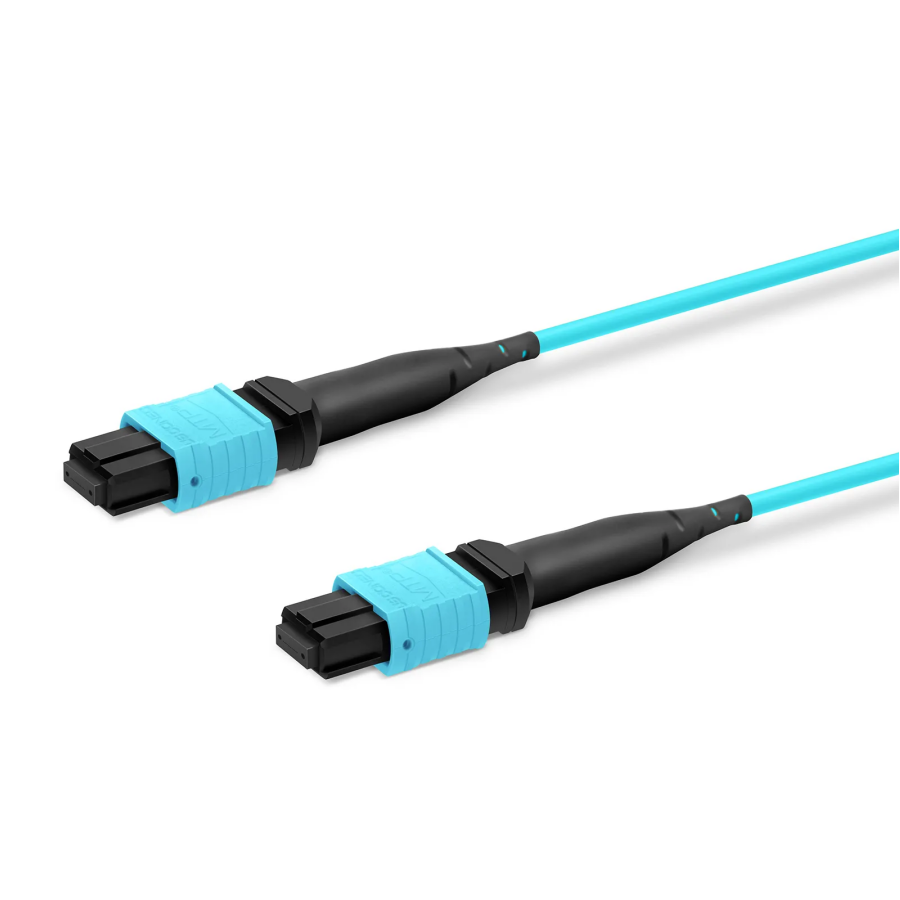

MTP Trunk Cable with 0.20dB Low IL 48F OM3 OFNP Fire Safety-Rated for High-Density Data Centers

  • 1
  • 2

Brand Name : CY COM

Model Number : MPO/MTP

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Product Name : MPO Fiber Optic Patch Cord

Cable Color : Yellow / Aqua/purple

Cable Shape : Round / Ribbon

Connector Type : Female /Male

Cable Materia : LSZH / PVC

Polarity : A/B/C

Contact Now

MTP-12 Trunk Cable, F to F, UPC, 48F, OM3, OFNP, 0.20dB, Type B
MTP® trunks are factory pre-terminated and rigorously tested, coming with reliable MTP®-MTP® or MTP®-LC Uniboot connectors. Ultra-low loss MTP® connectors can reduce signal loss during transmission to support long-distance transmissions and multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over long-distance runs. These features make MTP® trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
Key Features
  • US Conec MTP® Connector with Optimal 0.20dB Low IL
    Bend Insensitive Fiber with 7.5mm Min. Bend Radius
    2.0mm Small-diameter Breakout Saves Space for High-density Cabling
    OFNP Fire Safety-Rated for Use in Plenum Air Spaces
    Color-Coded Connector Boots for Easy Identification
    For Longer Distances in Cabinet-to-Cabinet Applications
    Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications
Connector A
US Conec MTP® Elite Female (Non-Pinned)
Connector B
US Conec MTP® Elite Female (Non-Pinned)
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Glass Fiber
Bend Insensitive Fiber
Minimum Bend Radius
7.5mm
Polish Type
UPC to UPC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
48 Fibers (Base-12)
Breakout Length
0.5m
Cable Outside Diameter (OD)
8.5-9.0mm
Breakout Outside Diameter (OD)
2.0mm
Insertion Loss
≤0.20dB
Return Loss
≥27dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Long-term Tensile Load
200N
Short-term Tensile Load
660N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
Product Images

MTP Trunk Cable with 0.20dB Low IL 48F OM3 OFNP Fire Safety-Rated for High-Density Data Centers

MTP Trunk Cable with 0.20dB Low IL 48F OM3 OFNP Fire Safety-Rated for High-Density Data Centers
